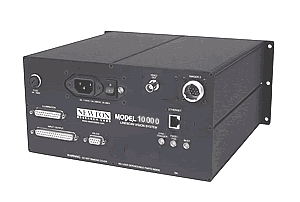

Model 10000

The Model 10000 is a high speed and high resolution color line scan vision system. Manufactured by Newton Labs for high speed color object recognition, tracking, color web inspection and color high resolution applications. The Model 10000 vision cabinet, like all Newton Labs products, is completely housed in NEMA rated extruded aluminum enclosure to perform under real factory floor conditions.
Technical Specifications
Construction
Size: 9.75" x 5" x10.25"
Weight: 10 lbs.
Enclosure:
NEMA rated extruded aluminum, completely enclosed
Processor:
High Performance Embedded MMX
Mounting:
Via 4 x 3/16" holes on back panel or various standard brackets
Connections
Serial:
Standard DB9 for RS232
Ethernet:
10/100 base T
Power:
85-240 VAC, 47-63 Hz, IEC 320 Connector - IEC 950 Compliant
I/O:
DB 37 connector to assure plenty of I/O options
Inputs:
8 digital
Outputs:
16 digital plus 3 for pass, fail, busy status
Line Scan Imagers:
Rugged 10 Pin connector
Video Output:
BNC connectors for vision output
Illumination:
DB 25 connector for illumination source
Operations
Speed:
Extremely high speed system, up to 66 MPixel per second
Set up:
 Use with Newton Labs preprogrammed software algorithms for easy set up
Storage Temperature:
0 - 150 degrees F
Operating Temperature:
40 - 100 degrees F (Optional high and low temperature systems available)



Please contact Newton Labs for your local Authorized Distributor
