Line Scan Vision Systems

Newton Labs' High Performance

Line Scan Vision Systems

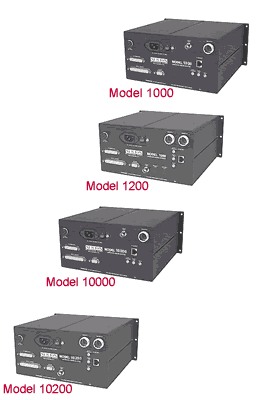

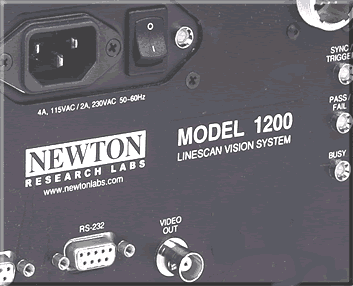

The Model 1000 and Model 1200 line scan vision systems represent Newton Labs' most popular line scan machine vision offerings. The highlights of the Model 1000 Series include:

• High resolution - 2048 pixels (Imager Model 4520) and 5150 pixels (Imager Model 4550)

• High speed - Up to 5000 scans per second
• High performance MMX processing power
• Dual Imagers (Model 1200)
• Abundant serial and digital I/O options
• Flexible communications via serial, Ethernet, and Rugged NEMA enclosures
• Convenient back plate for panel mounting

Combined with either a 4520 or 4550 line scan imager, Newton Labs Illuminator, and appropriate software component, Model 1000 Series line scan systems provide solutions for many web inspection, high resolution, and high speed applications.

Common web inspection examples are:

• Textiles - pattern off trending, seam detection, defect detection
• Paper - specks, tears, wrinkles, off colors
• Plastics - bubbles, holes, blisters, flash, seam integrity
• Metal - scratches, chip outs, machine marks, hole size and location
• Wood - grain, color, knot and defect detection.

Other line scan applications are commonly found in:

• Packaging - seal adhesion integrity, glue coverage, print quality
• High resolution surface inspection - scratches, dents, holes, voids, nodules, defects on small objects such as fiber optics and glass strips, OCR and OCV on small surface areas.
