Model 10200

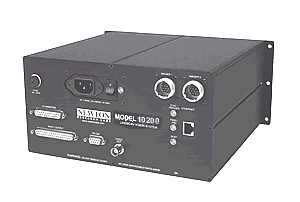

The Model 10200 concurrently processes the video from two Newton Labs Model 4620 Color Line Scan Cameras where simultaneous inspection from both cameras is required. It is commonly used to increase the number of pixels (and thus the resolution) when the resolution from a single line scan camera is not sufficient for the application or to perform two different inspections simultaneously (such as the top and bottom of the same web).
Technical Specifications
Construction
Size: 9.25" x 5" x 9.25"
Weight: 10.5 lbs.
Enclosure:
NEMA rated extruded aluminum, completely enclosed
Processor:
High Performance Embedded MMX
Mounting:
Via 4 x 3/16" holes on back panel or various standard brackets
Connections
Serial:
Standard DB9 for RS232
Ethernet:
10/100 base T
Power:
85-240 VAC, 47-63 Hz, IEC 320 Connector - IEC 950 Compliant
I/O:
DB 37 connector to assure plenty of I/O options
Inputs:
8 digital
Outputs:
16 digital plus 3 for pass, fail, busy status
Line Scan Imagers:
2 Rugged 10 Pin connectors
Video Output:
BNC connectors for vision output
Illumination:
DB 25 connector for illumination source
Operations
Speed:
Extremely high speed system, up to 10 billion pixel operations per second
Set up:
 Use with Newton Labs preprogrammed software algorithms for easy set up
Storage Temperature:
0 - 150 degrees F
Operating Temperature:
40 - 100 degrees F (Optional high and low temperature systems available)
