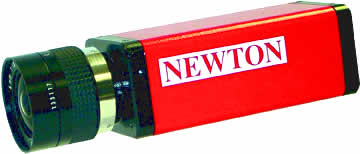

Model 4180 & 4180-IR



Download Model 4180's Data Sheet
Requires Adobe Acrobat Reader



The Model 4180 and 4180-IR Imagers are specifically designed to be integrated with a Newton Labs Series 9000, 8000 or 7000 Area Scan Vision Systems



Technical Specifications
Format: RS170A (NTSC)
Imaging Sensor: 1/3 Inch Color CCD
Effective Picture Elements:
768 Horizontal x 494 Vertical
Minimum Illumination :
.7 Lux
Signal to Noise Ratio:
Greater Then 45dB
Sync System:
Internal/External (Vision System Controlled)
IR Sensitive:
4180 IRD-IR Sensitive / 4180 Non-IR Sensitive
White Balance:
Adjustable (Vision System Controlled)
Shutter Speed :
1/60 to 1/20,000 (Vision System Controlled)
Gain:
Adjustable (Vision System Controlled)
Power:
12 VDC @ 200mA
Lens Mount:
C/CS Mount
Weight:
12.5 oz (354 grams)
Operating Environment:
-5 Degrees C to +45 Degrees C
Minimum-Max Storage Environment:
-20 Degrees C to +70 Degrees C
Adjustments:
Vision System Controlled
Optional Lens Iris Control:
Vision System Controlled
Connections:
Newton Labs Imager Cable
Focus:
Unique back focus adjustment from both front and rear of camera



Please contact Newton Labs for your local Authorized Distributor
