The
Model 7800 Break Out Box was designed to add convenience to
the installation and setup of the Model 5000, 5500, 6000 and
6500 vision systems. Typically these models use a 24 pin connector
and cable for the user to wire up as necessary for the application.

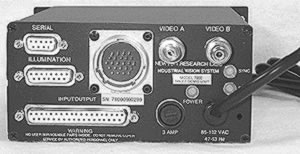

The Model 7800 allows the vision system to connect directly
to it via the 24 pin connector and cable. The Model 7800 is
both the power supply and the junction box for the vision
system providing one way connectors on the front panel for
the user to connect the lap top, illumination, I/O, and video
out.
|
|
Technical
Specifications
|
| Construction
|
| Weight: |
3.25
lbs. |
| Enclosure: |
NEMA
rated extruded aluminum, completely enclosed, lens exposed
|
| Processor: |
MMX
|
|
Mounting:
|
Various
standard brackets
|
|
Connections
- 24 pin NEMA connector
|
|
Serial:
|
DB
9 for RS232/RS422 Configuration
|
|
Input
Voltage:
|
85-240
VAC, 47-63 Hz, IEC 320 Connector-IEC 950 Compliant
|
|
Input
Current:
|
3
A @115 VAC, 1.5 A @ 230 VAC
|
|
I/O:
|
DB
37
|
|
Imager
Outputs:
|
BNC
connector for direct Imager output
|
|
Video
Output :
|
BNC
connector for vision system output in video format
|
|
Illumination:
|
Typically
DB 25 pin connector for illumination source
|
| Operations |
|
Speed:
|
Track
objects of three different colors moving at over 100 feet per
second |
|
Set
up:
|
Use
with Newton Labs preprogrammed software algorithms for easy
set up |
|
Operating
Temperature:
|
32
- 125 degrees F
|
|
Please
contact Newton Labs for your local
Authorized Distributor
|
