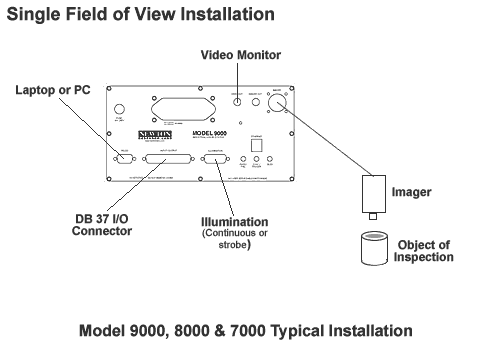

| The Model 9000, 8000 and 7000 is typically used for inspections requiring a single field of view or only one Imager as depicted in the diagram above (one side of an object). In these cases, the associated vision system will be mounted in a position (fixed or robot controlled), which in relation to the installed illumination source, will provide optimum resolution, contrast, and image quality for the given inspection. |
Typical Area Scan Installations
|
Single
Imager Installation
|
Typical Line Scan Installations
