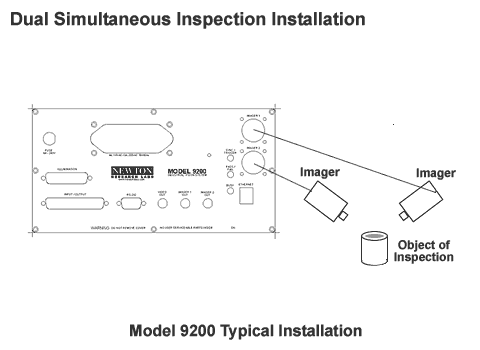

| The Model 9200 is typically (also see two sides and using a reference line) used for applications requiring two Imagers capable of simultaneous inspection from each camera. An example application is 3D stereo tracking of moving objects. In this case, each Imager reports out the X and Y coordinates of the centroid of the moving object. The resulting X and Y coordinate data from each camera can be combined (via software) and translated to the equivalent of X, Y, and Z dimensional movement. |
Typical Area Scan Installations
|
Dual
Simultaneous Imagers Installation
|
