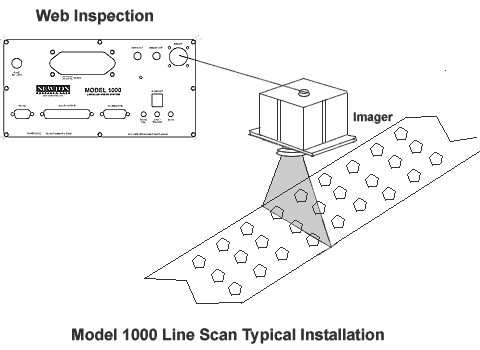

| The Model 1000 is typically used for web inspections requiring a single field of view or only one Imager as depicted in the diagram above. In these cases, the associated Model 4520 or 4550 Imager will be mounted in a fixed position, which in relation to the installed illumination source, will provide optimum resolution, contrast, and image quality for the given inspection. |
Typical Line Scan Installations
|
Web
Inspections Installation
|
||
Typical Area Scan Installations
