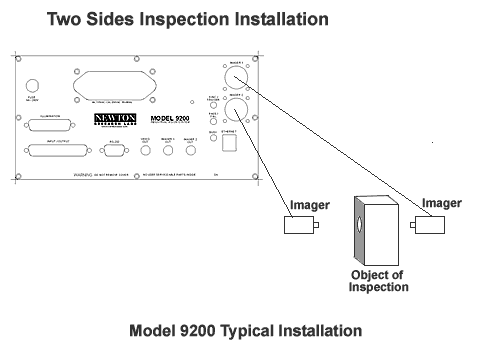

| Another example application for dual simultaneous inspection from two Imagers is when two sides of an object must be inspected at the same time as depicted above. (See using a reference line or go back to Dual Simultaneous Installation) |
