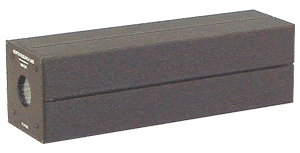

| The Model 5500 is an integrated vision system and imager completely enclosed in a waterproof and/or NEMA rated extruded aluminum housing. It is designed as a low cost single camera unit ready to install on the factory floor. The Model 5500 is most commonly used for color inspection, color recognition, color tracking, color presence/ absence, color assembly verification and color based guidance. |
|
Technical
Specifications
|
|
| Construction | |
| Size: | 3.5" x 3.5" x 12" |
| Weight: | 5.5 lbs. |
| Enclosure: |
Waterproof
and/or NEMA rated extruded aluminum, lens and imager completely
enclosed
|
| Processor: |
Motorola
68332
|
|
Mounting:
|
Various
standard brackets
|
|
Power:
|
18
to 36 VDC or 12 VDC
|
|
Connections
- 24 pin NEMA connector
|
|
|
Serial:
|
4 x
for RS232/RS 422
|
|
Power:
|
2
x
|
|
Inputs:
|
2
x digital
|
|
Outputs:
|
4
x digital plus 3 x for busy, status, trigger
|
|
Imager:
|
2
x
|
|
Ground:
|
4
x
|
| Operations | |
|
Speed:
|
Track
object of three different colors moving at over 100 feet per second
|
|
Resolution:
|
640
x 480 Maximum
|
|
Set
up:
|
Use with Newton Labs preprogrammed software algorithms for easy set up |
|
Operating
Temperature:
|
32
- 125 degrees F
|
|
