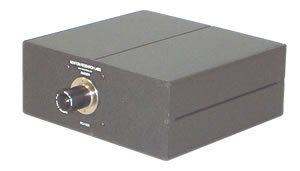

| The Model 6000 is an integrated vision system and imager housed in a NEMA rated rugged extruded aluminum enclosure (lens exposed). It is designed as a powerful single camera unit ready to install on the factory floor. The Model 6000 is most commonly used for color recognition, pattern recognition, inspection, color tracking, color presence absence, color assembly verification, and color based guidance. |
|
Technical
Specifications
|
|
| Construction | |
| Size: | 9.5" x 3.5" x 9.25" |
| Weight: | 8 lbs. |
| Enclosure: |
NEMA
rated extruded aluminum, completely enclosed, lens exposed
|
| Processor: |
Embedded
MMX
|
|
Mounting:
|
Various
standard brackets
|
|
Power:
|
18
to 36 VDC or 12 VDC
|
|
Connections
- 24 pin NEMA connector
|
|
|
Serial:
|
4 x
for RS232/RS 422
|
|
Power:
|
2
x
|
|
Inputs:
|
2
x digital
|
|
Outputs:
|
4
x digital plus 3 x for busy, status, trigger
|
|
Imager:
|
2
x
|
|
Ground:
|
4
x
|
| Operations | |
|
Speed:
|
60Hz
maximum update rate
|
|
Resolution:
|
640
x 480 standard, higher resolution optional
|
|
Set
up:
|
Use with Newton Labs preprogrammed software algorithms for easy set up |
|
Operating
Temperature:
|
32
- 100 degrees F
|
|
