Model 7400



Download Model 7400's Data Sheet
Requires Adobe Acrobat Reader

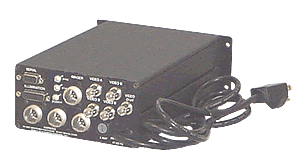

The Model 7400 vision system is designed to be used with up to four Newton Labs Imagers (or any NTSC cameras). The Model 7400 is designed to be easily integrated with appropriate imagers and illumination sources and is most commonly used for high speed color tracking, color inspection, color recognition / identification, color presence absence, color assembly verification, and color based navigation / motion control.
Technical Specifications
Construction
Size: 7.25" x 3.5" x 8"
Weight: 4 lbs.
Enclosure:
NEMA rated extruded aluminum, completely enclosed
Processor:
Motorola 68332
Mounting:
Via 4 x 3/16" holes on back panel or various standard brackets
Connections
Serial:
Standard DB9 for RS232/RS422
Power:
85-240 VAC, 47-63 Hz or 18-36 VDC
I/O:
DB 37 connector to assure plenty of I/O options
Inputs:
2 digital per 4 channels (cameras)
Outputs:
2 digital per 4 channels (cameras), also 2 for busy and status
Imager:
4x Nema rated 10 pin connector
Camera:
 Video A - BNC connectors for vision output, Video B - BNC connectors for camera output
Illumination:
DB 25 connector for illumination source
Operations
Speed:
Track objects of three different colors moving at over 100 feet per second
Set up:
 Use with Newton Labs preprogrammed software algorithms for easy set up
Operating Temperature:
32 - 125 degrees F
