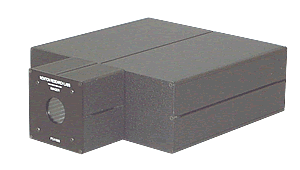

| The Model 6500 is an integrated vision system and imager, completely enclosed in a waterproof and/or NEMA rated rugged extruded aluminum enclosure. It is designed as a powerful single camera unit ready to install on the factory floor, protected from contact with dust, debris, and tampering. The Model 6500 is commonly used for color recognition, pattern recognition, inspection, color tracking, color presence absence, color assembly verification, and color based guidance. |
|
Technical
Specifications
|
|
| Construction | |
| Size: | 9.5" x 3.5" x11" |
| Weight: | 8.5 lbs. |
| Enclosure: |
Waterproof
and/or NEMA rated extruded aluminum, completely enclosed
|
| Processor: |
Embedded
MMX
|
|
Mounting:
|
Various
standard brackets
|
|
Power:
|
18
to 36 VDC or 12 VDC
|
|
Connections
- 24 pin NEMA connector
|
|
|
Serial:
|
4 x
for RS232/RS 422
|
|
Power:
|
2
x
|
|
Optional
Ethernet:
|
4
x for 10/100 base T
|
|
Inputs:
|
2
x digital
|
|
Outputs:
|
4
x digital plus 3 x for busy, status, trigger
|
|
Imager:
|
2
x
|
|
Ground:
|
4
x
|
| Operations | |
|
Speed:
|
60Hz
maximum update rate
|
|
Resolution:
|
640
x 480 standard, higher resolution optional
|
|
Set
up:
|
Use with Newton Labs preprogrammed software algorithms for easy set up |
|
Operating
Temperature:
|
32
- 100 degrees F
|
|
