Model 8400



Download Model 8400's Data Sheet
Requires Adobe Acrobat Reader

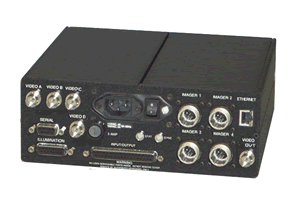

The Model 8400 vision system is designed for use with up to four Newton Labs Imagers (or any NTSC cameras). The Model 8400 is a very powerful yet low cost multiple camera color vision system, designed to be integrated with the appropriate imagers and illumination sources and used for a wide variety of vision tasks, including inspection, pattern recognition, high speed color tracking, color recognition / identification, color presence absence, color assembly verification and navigation / motion control.
Technical Specifications
Construction
Size: 9.25" x 5" x 9.25"
Weight: 10 lbs.
Enclosure:
NEMA rated extruded aluminum, completely enclosed
Processor:
Embedded MMX
Mounting:
Via 4 x 3/16" holes on back panel or various standard brackets
Connections
Serial:
Standard DB9 for RS232/RS422
Ethernet:
10base T
Power:
85-240 VAC, 47-63 Hz or 18-36 VDC
I/O:
DB 37 connector to assure plenty of I/O options
Inputs:
8 digital
Outputs:
16 digital plus 3 for pass, fail, busy status
Imager:
4 x Nema rated 9 pin connector
Camera:
 Video A - BNC connectors for vision output, Video B - BNC connectors for camera output
Illumination:
DB 15 connector for illumination source
Operations
Speed:
60 Hz update maximum, 5.6 billion pixel operations per second maximum
Set up:
 Use with Newton Labs preprogrammed software algorithms for easy set up
Operating Temperature:
32 - 100 degrees F



Please contact Newton Labs for your local Authorized Distributor
