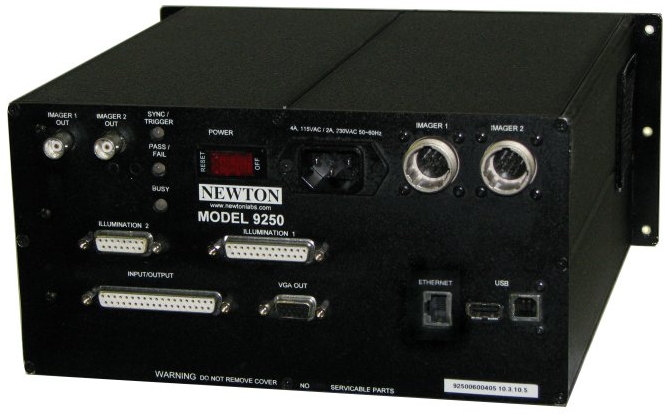

Model 9250

The Model 9250 concurrently processes the video from two cameras where simultaneous inspection from both cameras is required. It excels in applications such as 3D stereo tracking, applications where two sides of an object must be inspected at the same time or cases when a reference dimension must be maintained during the inspection

Technical Specifications
Construction
Size:	9.25" x 5" x 10"
Weight:	10 lbs.
Enclosure:	NEMA rated extruded aluminum, completely enclosed
Processor:	Pentium 4 Embedded MMX
Mounting:	Via 4 x 3/16" holes on back panel or various standard brackets
Connections
Serial:	Standard DB9 for RS232/RS422
Ethernet:	10/100/1000 Mbps
Input Voltage :	85-240 VAC, 47-63 Hz, IEC 320 Connector - IEC 950 Compliant
Input Current:	3 A @ 115 VAC, 1.5 A @ 230 VAC
I/O:	DB 37 connector to assure plenty of I/O options
Inputs:	8 digital (1 for Trigger), Line lock/Sync and RS422 Serial Data Input
Outputs:	16 digital plus 3 for pass, fail, busy status, RS422 Serial Data, and USB
Imager:	2 Rugged 10 pin connectors
Imager Output:	2 BNC connector for direct Imager output
Video Output:	D-SUB port for output in VGA format
Illumination:	DB 25 connector for illumination source
Operations
Speed:	Extremely high speed systems, up to 8.8 billion pixel operations per second
Set up:	Use with Newton Labs preprogrammed software algorithms for easy set up
Operating Temperature:	40 - 100 degrees F (optional high and low temperature systems available)

Please contact Newton Labs for your local Authorized Distributor
