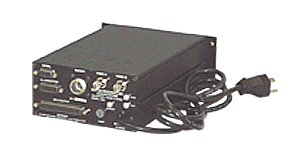

| The Model 7000 vision system is designed for use with a single Newton Labs Imager (or any NTSC camera). The Model 7000 is designed to be easily integrated with an appropriate imager and illumination source and is most commonly used for color inspection, color recognition, color tracking, color presence/absence, color assembly verification and color based guidance. |
|
Technical
Specifications
|
|
| Construction | |
| Size: | 5.25" x 2.5" x 8" |
| Weight: | 4 lbs. |
| Enclosure: |
NEMA
rated extruded aluminum, completely enclosed
|
| Processor: |
Motorola
68332
|
|
Mounting:
|
Via
4 x 3/16" holes on back panel or various standard brackets
|
|
Connections
|
|
|
Serial:
|
Standard
DB9 for RS232/RS422
|
|
Power:
|
85-240
VAC, 47-63 Hz or 18-36 VDC
|
|
I/O:
|
DB
37 connector to assure plenty of I/O options
|
|
Inputs:
|
8
digital
|
|
Outputs:
|
16
digital plus 3 for pass, fail and busy/status
|
|
Imager:
|
NEMA rated 10 pin connector
|
|
Camera:
|
Video A - BNC connectors for vision output, Video B - BNC connectors for camera output |
|
Illumination:
|
DB
25 connector for illumination source
|
| Operations | |
|
Speed:
|
Track
objects of three different colors moving at over 100 feet per second
|
|
Set
up:
|
Use with Newton Labs preprogrammed software algorithms for easy set up |
|
Operating
Temperature:
|
32
- 125 degrees F
|
|
